Polarised beams as Jones or Mueller Matrices

For any feed, one has to know how an incoming radiation in the direction tex2html_wrap_inline1004 is mapped in the focal plane at the position of the feed. This corresponds to a Jones matrix for each direction in the sky. To define the Jones matrix, one has to give oneself reference frames, both for the incoming radiation, in the plane tangent to the celestial sphere in the direction tex2html_wrap_inline1004, and in the focal planegif, for the radiation entering the feed. There are usual conventions for this, some of which are described in Ludwig [Ludwig1973] (see figure 1 for the Ludwig III convention). In the particular case of antennas, one only needs to know the Co and Cross amplitudes, corresponding to the exact direction of the antenna, in other word the first line of the Jones matrix in the Co-Cross reference frame of the antenna. But, for any change in the direction of the antenna, one needs the full Jones matrix, or equivalently, the Co and Cross amplitudes for two different directions of the antenna. In addition, for bolometric observations, the antenna is replaced by a polarimeter which is never perfect and will leak some energy in the orthogonal direction to the bolometer. Therefore, the radiation pattern in the orthogonal direction is also required, although a rough knowledge will often be sufficient.

  figure354

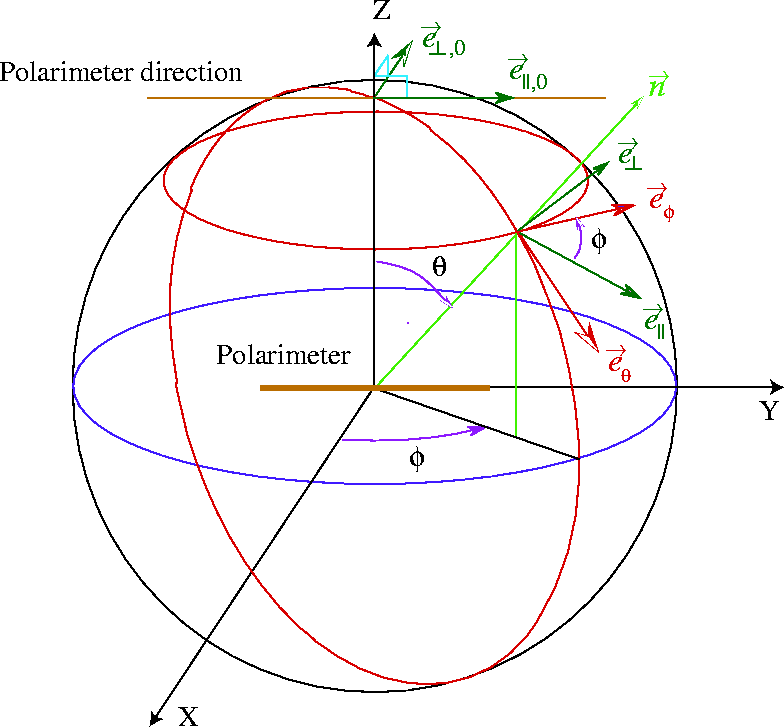

Figure 1: Co and Cross basis vector in the Ludwig III convention
