G4Polymarker Class Reference

#include <G4Polymarker.hh>

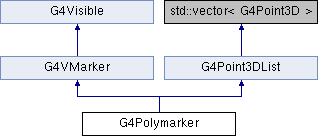

Inheritance diagram for G4Polymarker:

Public Types
enum	FillStyle { noFill , hashed , filled }
typedef std::vector< G4Point3D >::iterator	iterator
enum	MarkerType { dots , circles , squares }
enum	SizeType { none , world , screen }

Public Member Functions
	G4Polymarker ()
	G4Polymarker (const G4VMarker &)
FillStyle	GetFillStyle () const
virtual const G4String &	GetInfo () const
MarkerType	GetMarkerType () const
G4Point3D	GetPosition () const
G4double	GetScreenDiameter () const
G4double	GetScreenRadius () const
G4double	GetScreenSize () const
SizeType	GetSizeType () const
const G4VisAttributes *	GetVisAttributes () const
G4double	GetWorldDiameter () const
G4double	GetWorldRadius () const
G4double	GetWorldSize () const
G4bool	operator!= (const G4Visible &right) const
G4bool	operator!= (const G4VMarker &) const
G4bool	operator== (const G4VMarker &) const
void	SetDiameter (SizeType, G4double)
void	SetFillStyle (FillStyle)
virtual void	SetInfo (const G4String &info)
void	SetMarkerType (MarkerType)
void	SetPosition (const G4Point3D &)
void	SetRadius (SizeType, G4double)
void	SetScreenDiameter (G4double)
void	SetScreenRadius (G4double)
void	SetScreenSize (G4double)
void	SetSize (SizeType, G4double)
void	SetVisAttributes (const G4VisAttributes &)
void	SetVisAttributes (const G4VisAttributes *)
void	SetWorldDiameter (G4double)
void	SetWorldRadius (G4double)
void	SetWorldSize (G4double)
virtual	~G4Polymarker ()

Protected Attributes
G4bool	fAllocatedVisAttributes
const G4VisAttributes *	fpVisAttributes

Private Attributes
FillStyle	fFillStyle
G4String	fInfo
MarkerType	fMarkerType
G4Point3D	fPosition
G4double	fScreenSize
G4double	fWorldSize

Friends
std::ostream &	operator<< (std::ostream &os, const G4Polymarker &marker)

Detailed Description

Definition at line 42 of file G4Polymarker.hh.

Member Typedef Documentation

iterator

typedef std::vector<G4Point3D>::iterator G4Point3DList::iterator

inherited

Definition at line 48 of file G4Point3DList.hh.

Member Enumeration Documentation

FillStyle

enum G4VMarker::FillStyle

inherited

Enumerator
noFill
hashed
filled

Definition at line 96 of file G4VMarker.hh.

{noFill, hashed, filled};

MarkerType

enum G4Polymarker::MarkerType

Enumerator
dots
circles
squares

Definition at line 47 of file G4Polymarker.hh.

{dots, circles, squares};

SizeType

enum G4VMarker::SizeType

inherited

Enumerator
none
world
screen

Definition at line 97 of file G4VMarker.hh.

{none, world, screen};

Constructor & Destructor Documentation

G4Polymarker() [1/2]

G4Polymarker::G4Polymarker

(

)

Definition at line 33 of file G4Polymarker.cc.

                           :
fMarkerType (G4Polymarker::dots)
{}

G4Polymarker() [2/2]

G4Polymarker::G4Polymarker

(

const G4VMarker &

marker

)

Definition at line 37 of file G4Polymarker.cc.

                                                  :
  G4VMarker (marker),
  fMarkerType (G4Polymarker::dots)
{}

~G4Polymarker()

G4Polymarker::~G4Polymarker ( )

virtual

Definition at line 42 of file G4Polymarker.cc.

{}

Member Function Documentation

GetFillStyle()

FillStyle G4VMarker::GetFillStyle ( ) const

inherited

Referenced by G4OpenInventorSceneHandler::AddCircleSquare(), G4OpenGLSceneHandler::AddPrimitive(), and G4OpenInventorSceneHandler::AddPrimitive().

GetInfo()

virtual const G4String & G4VMarker::GetInfo ( ) const

virtualinherited

Referenced by G4OpenGLQtViewer::addNonPVSceneTreeElement().

GetMarkerType()

MarkerType G4Polymarker::GetMarkerType

(

)

const

Referenced by G4VSceneHandler::AddPrimitive(), G4OpenGLSceneHandler::AddPrimitive(), G4OpenInventorSceneHandler::AddPrimitive(), G4Qt3DSceneHandler::AddPrimitive(), and G4ToolsSGSceneHandler::AddPrimitive().

GetPosition()

G4Point3D G4VMarker::GetPosition ( ) const

inherited

Referenced by G4OpenInventorSceneHandler::AddCircleSquare(), G4HepRepFileSceneHandler::AddPrimitive(), G4OpenGLSceneHandler::AddPrimitive(), G4Qt3DSceneHandler::AddPrimitive(), G4OpenInventorSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4VtkSceneHandler::AddPrimitive(), G4OpenGLQtViewer::DrawText(), G4OpenGLViewer::DrawText(), G4OpenGLXViewer::DrawText(), and G4TextModel::G4TextModel().

GetScreenDiameter()

G4double G4VMarker::GetScreenDiameter ( ) const

inherited

Referenced by G4Qt3DSceneHandler::AddPrimitive().

GetScreenRadius()

G4double G4VMarker::GetScreenRadius ( ) const

inherited

Referenced by G4Qt3DSceneHandler::AddPrimitive().

GetScreenSize()

G4double G4VMarker::GetScreenSize ( ) const

inherited

Referenced by G4VtkSceneHandler::AddPrimitive(), G4TextModel::G4TextModel(), and G4VSceneHandler::GetMarkerSize().

GetSizeType()

G4VMarker::SizeType G4VMarker::GetSizeType ( ) const

inherited

Definition at line 87 of file G4VMarker.cc.

                                                {
  SizeType type = none;
  if (fWorldSize) type = world;
  else if (fScreenSize) type = screen;
  return type;
}

References G4VMarker::fScreenSize, G4VMarker::fWorldSize, G4VMarker::none, G4VMarker::screen, and G4VMarker::world.

Referenced by G4Qt3DSceneHandler::AddPrimitive().

GetVisAttributes()

const G4VisAttributes * G4Visible::GetVisAttributes ( ) const

inherited

Referenced by G4OpenInventorSceneHandler::AddCircleSquare(), G4HepRepFileSceneHandler::AddHepRepInstance(), G4ToolsSGSceneHandler::AddPrimitive(), G4Qt3DSceneHandler::AddPrimitive(), G4VtkSceneHandler::AddPrimitive(), G4GMocrenFileSceneHandler::AddPrimitive(), G4OpenInventorSceneHandler::AddPrimitive(), G4OpenGLImmediateSceneHandler::AddPrimitivePreambleInternal(), G4OpenGLStoredSceneHandler::AddPrimitivePreambleInternal(), G4VtkSceneHandler::AddPrimitiveTensorGlyph(), G4VSceneHandler::GetColour(), G4VSceneHandler::GetTextColour(), and G4VSceneHandler::LoadAtts().

GetWorldDiameter()

G4double G4VMarker::GetWorldDiameter ( ) const

inherited

Referenced by G4Qt3DSceneHandler::AddPrimitive().

GetWorldRadius()

G4double G4VMarker::GetWorldRadius ( ) const

inherited

Referenced by G4HepRepFileSceneHandler::AddPrimitive(), and G4Qt3DSceneHandler::AddPrimitive().

GetWorldSize()

G4double G4VMarker::GetWorldSize ( ) const

inherited

Referenced by G4VSceneHandler::GetMarkerSize().

operator!=() [1/2]

G4bool G4Visible::operator!= ( const G4Visible &  right ) const

inherited

Definition at line 103 of file G4Visible.cc.

                                                           {
  if (fpVisAttributes && right.fpVisAttributes)
    return *fpVisAttributes != *right.fpVisAttributes;
  else if (!fpVisAttributes && !right.fpVisAttributes) return false;
  else return true;
}

References G4Visible::fpVisAttributes.

operator!=() [2/2]

G4bool G4VMarker::operator!= ( const G4VMarker &  mk ) const

inherited

Definition at line 55 of file G4VMarker.cc.

                                                        {
  return ( (G4Visible::operator != (mk))   ||
           (fWorldSize  != mk.fWorldSize)  ||
           (fScreenSize != mk.fScreenSize) ||
           (fFillStyle  != mk.fFillStyle)  ||
           !(fPosition  == mk.fPosition)   ||
           (fInfo       != mk.fInfo) );
}

References G4VMarker::fFillStyle, G4VMarker::fInfo, G4VMarker::fPosition, G4VMarker::fScreenSize, and G4VMarker::fWorldSize.

operator==()

G4bool G4VMarker::operator== ( const G4VMarker &  ) const

inherited

SetDiameter()

void G4VMarker::SetDiameter ( SizeType  , G4double    )

inherited

Referenced by anonymous_namespace{G4LogicalVolumeModel.cc}::DrawPoint().

SetFillStyle()

void G4VMarker::SetFillStyle ( FillStyle  )

inherited

Referenced by anonymous_namespace{G4LogicalVolumeModel.cc}::DrawPoint(), G4TrajectoryDrawerUtils::DrawWithoutTime(), and G4TrajectoryDrawerUtils::DrawWithTime().

SetInfo()

virtual void G4VMarker::SetInfo ( const G4String &  info )

virtualinherited

Referenced by G4OpenGLSceneHandler::AddCompound(), and G4Qt3DSceneHandler::AddCompound().

SetMarkerType()

void G4Polymarker::SetMarkerType

(

MarkerType

)

Referenced by G4OpenGLSceneHandler::AddCompound(), G4Qt3DSceneHandler::AddCompound(), G4OpenGLSceneHandler::AddPrimitive(), G4ToolsSGSceneHandler::AddPrimitive(), G4TrajectoryDrawerUtils::DrawWithoutTime(), G4TrajectoryDrawerUtils::DrawWithTime(), and G4VSceneHandler::RequestPrimitives().

SetPosition()

void G4VMarker::SetPosition ( const G4Point3D &  )

inherited

Referenced by G4VSceneHandler::AddPrimitive(), G4GPSModel::DescribeYourselfTo(), anonymous_namespace{G4LogicalVolumeModel.cc}::DrawPoint(), and G4TextModel::G4TextModel().

SetRadius()

void G4VMarker::SetRadius ( SizeType  , G4double    )

inherited

SetScreenDiameter()

void G4VMarker::SetScreenDiameter ( G4double  )

inherited

Referenced by G4GPSModel::DescribeYourselfTo().

SetScreenRadius()

void G4VMarker::SetScreenRadius ( G4double  )

inherited

SetScreenSize()

void G4VMarker::SetScreenSize ( G4double  )

inherited

Referenced by G4VSceneHandler::AddPrimitive(), G4AxesModel::Construct(), G4ScoreLogColorMap::DrawColorChartText(), G4VScoreColorMap::DrawColorChartText(), G4OpenGLStoredViewer::DrawDisplayLists(), G4ViewParameters::G4ViewParameters(), G4VisCommandSceneAddDate::Date::operator()(), G4VisCommandSceneAddEventID::EventID::operator()(), G4VisCommandSceneAddLogo2D::Logo2D::operator()(), G4VisCommandSceneAddScale::Scale::Scale(), G4VisCommandSceneAddText::SetNewValue(), and G4VisCommandSceneAddText2D::SetNewValue().

SetSize()

void G4VMarker::SetSize ( SizeType  sizeType, G4double  size  )

inherited

Definition at line 94 of file G4VMarker.cc.

                                                         {
  fWorldSize = fScreenSize = 0.;
  if (sizeType == world) fWorldSize = size;
  else if (sizeType == screen) fScreenSize = size;
}

References G4VMarker::fScreenSize, G4VMarker::fWorldSize, G4VMarker::screen, and G4VMarker::world.

Referenced by G4OpenGLSceneHandler::AddCompound(), G4Qt3DSceneHandler::AddCompound(), G4TrajectoryDrawerUtils::DrawWithoutTime(), G4TrajectoryDrawerUtils::DrawWithTime(), and G4VSceneHandler::RequestPrimitives().

SetVisAttributes() [1/2]

void G4Visible::SetVisAttributes ( const G4VisAttributes &  VA )

inherited

Definition at line 85 of file G4Visible.cc.

                                                           {
  // Allocate G4VisAttributes on the heap in case the user specifies a
  // short-lived VA for a long-lived G4Visible.  Flag so that it can
  // be deleted in the destructor.
  // First delete any G4VisAttributes already on the heap...
  if (fAllocatedVisAttributes) delete fpVisAttributes;
  fpVisAttributes = new G4VisAttributes(VA);
  fAllocatedVisAttributes = true;
}

References G4Visible::fAllocatedVisAttributes, and G4Visible::fpVisAttributes.

SetVisAttributes() [2/2]

void G4Visible::SetVisAttributes ( const G4VisAttributes *  pVA )

inherited

Definition at line 96 of file G4Visible.cc.

                                                            {
  // First delete any G4VisAttributes already on the heap...
  if (fAllocatedVisAttributes) delete fpVisAttributes;
  fpVisAttributes = pVA;
  fAllocatedVisAttributes = false;
}

References G4Visible::fAllocatedVisAttributes, and G4Visible::fpVisAttributes.

Referenced by G4OpenGLSceneHandler::AddCompound(), G4Qt3DSceneHandler::AddCompound(), G4VisCommandSceneAddArrow2D::Arrow2D::Arrow2D(), G4DrawVoxels::ComputeVoxelPolyhedra(), G4AxesModel::Construct(), G4PhysicalVolumeModel::DescribeSolid(), G4GPSModel::DescribeYourselfTo(), G4VFieldModel::DescribeYourselfTo(), G4ScoringBox::Draw(), G4ScoringCylinder::Draw(), G4ScoreLogColorMap::DrawColorChartBar(), G4VScoreColorMap::DrawColorChartBar(), G4ScoreLogColorMap::DrawColorChartText(), G4VScoreColorMap::DrawColorChartText(), G4ScoringBox::DrawColumn(), G4ScoringCylinder::DrawColumn(), G4OpenGLStoredViewer::DrawDisplayLists(), anonymous_namespace{G4LogicalVolumeModel.cc}::DrawPoint(), G4TrajectoryDrawerUtils::DrawWithoutTime(), G4TrajectoryDrawerUtils::DrawWithTime(), G4ArrowModel::G4ArrowModel(), G4VisCommandSceneAddLogo::G4Logo::G4Logo(), G4VisCommandSceneAddLine::Line::Line(), G4VisCommandSceneAddLine2D::Line2D::Line2D(), G4VisCommandSceneAddDate::Date::operator()(), G4VisCommandSceneAddEventID::EventID::operator()(), G4VisCommandSceneAddFrame::Frame::operator()(), G4VisCommandSceneAddLogo2D::Logo2D::operator()(), G4VSceneHandler::RequestPrimitives(), G4VisCommandSceneAddScale::Scale::Scale(), G4VisCommandSceneAddText::SetNewValue(), and G4VisCommandSceneAddText2D::SetNewValue().

SetWorldDiameter()

void G4VMarker::SetWorldDiameter ( G4double  )

inherited

SetWorldRadius()

void G4VMarker::SetWorldRadius ( G4double  )

inherited

Referenced by G4OpenGLStoredViewer::DrawDisplayLists().

SetWorldSize()

void G4VMarker::SetWorldSize ( G4double  )

inherited

Referenced by G4VSceneHandler::AddPrimitive().

Friends And Related Function Documentation

operator<<

std::ostream & operator<< ( std::ostream &  os, const G4Polymarker &  marker  )

friend

Definition at line 44 of file G4Polymarker.cc.

                                                                     {
  os << "G4Polymarker: type: ";
  switch (marker.fMarkerType) {
  case G4Polymarker::dots:
    os << "dots"; break;
  case G4Polymarker::circles:
    os << "circles"; break;
  case G4Polymarker::squares:
    os << "squares"; break;
  default:
    os << "unrecognised"; break;
  }
  os << "\n  " << (G4VMarker) marker;
  os << "\n  " << (G4Point3DList) marker;
  return os;
}

Field Documentation

fAllocatedVisAttributes

G4bool G4Visible::fAllocatedVisAttributes

protectedinherited

Definition at line 83 of file G4Visible.hh.

Referenced by G4Visible::G4Visible(), G4Visible::operator=(), G4Visible::SetVisAttributes(), and G4Visible::~G4Visible().

fFillStyle

FillStyle G4VMarker::fFillStyle

privateinherited

Definition at line 154 of file G4VMarker.hh.

Referenced by G4VMarker::operator!=().

fInfo

G4String G4VMarker::fInfo

privateinherited

Definition at line 157 of file G4VMarker.hh.

Referenced by G4VMarker::operator!=().

fMarkerType

MarkerType G4Polymarker::fMarkerType

private

Definition at line 54 of file G4Polymarker.hh.

fPosition

G4Point3D G4VMarker::fPosition

privateinherited

Definition at line 151 of file G4VMarker.hh.

Referenced by G4VMarker::operator!=().

fpVisAttributes

const G4VisAttributes* G4Visible::fpVisAttributes

protectedinherited

Definition at line 82 of file G4Visible.hh.

Referenced by G4Visible::G4Visible(), G4Visible::operator!=(), G4Visible::operator=(), G4Visible::SetVisAttributes(), and G4Visible::~G4Visible().

fScreenSize

G4double G4VMarker::fScreenSize

privateinherited

Definition at line 153 of file G4VMarker.hh.

Referenced by G4VMarker::GetSizeType(), G4VMarker::operator!=(), and G4VMarker::SetSize().

fWorldSize

G4double G4VMarker::fWorldSize

privateinherited

Definition at line 152 of file G4VMarker.hh.

Referenced by G4VMarker::GetSizeType(), G4VMarker::operator!=(), and G4VMarker::SetSize().

---

The documentation for this class was generated from the following files:

• source/graphics_reps/include/G4Polymarker.hh
• source/graphics_reps/src/G4Polymarker.cc
