ecpi.common.instru.model_geom module

Section author: ECLAIRs GP team

Geometric description of the X-ray instrument

Summary

Classes:

InstruECLAIRs	Implementation of the ECLAIRs mask geometry in ECL_Los referential
InstruXMultiMask	To manage multiple mask for X-ray instrument
InstruXbase	Base class for X-ray instrument mask convention : 1 for hole, 0 stop photon

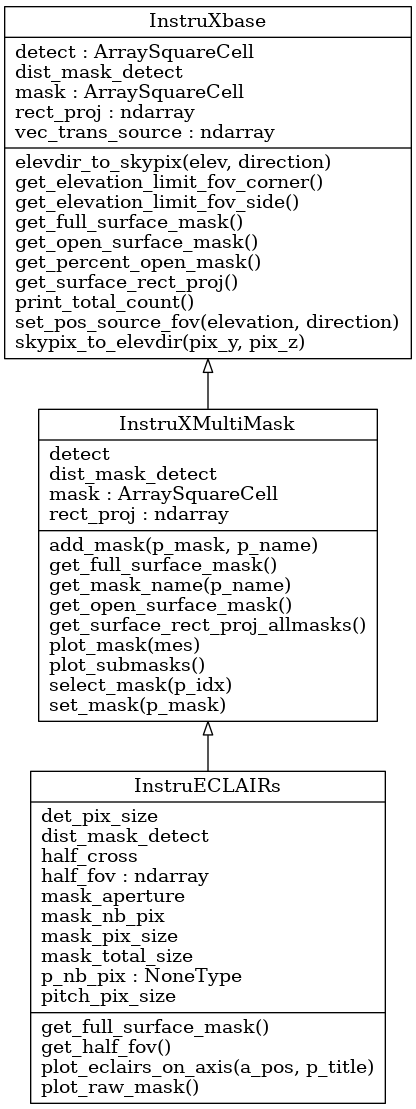

Class diagram:

Reference

class InstruECLAIRs(p_file_mask=None, p_nb_pix=None)

Bases: ecpi.common.instru.model_geom.InstruXMultiMask

Implementation of the ECLAIRs mask geometry in ECL_Los referential

get_full_surface_mask()

in cm2

get_half_fov()

return in deg diagonal the half of field of view of ECLAIRs instrument

plot_eclairs_on_axis(a_pos, p_title='')

plot_raw_mask()

class InstruXMultiMask(p_detec: ecpi.common.num.array_square_cell.ArraySquareCell, p_dist_mask_detec)

Bases: ecpi.common.instru.model_geom.InstruXbase

To manage multiple mask for X-ray instrument

add_mask(p_mask: ecpi.common.num.array_square_cell.ArraySquareCell, p_name=None)

get_full_surface_mask()

in cm2

get_mask_name(p_name)

get_open_surface_mask()

in cm2

get_surface_rect_proj_allmasks()

compute the surface on the detector of the projection of the masks (the coded detector surface). It is source dependent

Returns

coded detector surface in cm2

Return type

float

plot_mask(mes='mask')

plot_submasks()

select_mask(p_idx)

set_mask(p_mask)

class InstruXbase(p_mask: ecpi.common.num.array_square_cell.ArraySquareCell, p_detec: ecpi.common.num.array_square_cell.ArraySquareCell, p_dist_mask_detec)

Bases: object

Base class for X-ray instrument mask convention : 1 for hole, 0 stop photon

elevdir_to_skypix(elev, direction)

convert elevation/direction coordinates into sky pixels coordinates

(0,0) is at the center of the sky array

Parameters

• elev (float or array(float)) – elevation in degrees

• direction (float or array(float)) – direction in degrees

Returns

pixels y,z coordinates

Return type

float, float or array2D(float)

get_elevation_limit_fov_corner()

for special case where mask and detector are square and with the same center return deg

get_elevation_limit_fov_side()

for special case where mask and detector are square and with the same center return deg

get_full_surface_mask()

in cm2

get_open_surface_mask()

in cm2

get_percent_open_mask()

get_surface_rect_proj()

compute intersection detector and shadow mask then compute its surface

Returns

intersection surface in cm2

Return type

float

print_total_count()

set_pos_source_fov(elevation, direction)

set definition of the translation vector linked to the source vec_trans_source is also position on mask where photon passed to go on origin

skypix_to_elevdir(pix_y, pix_z)

convert pixel coordinates into elevation and direction

(0,0) is at the center of the sky array.

elevation from 0 to 90. direction from -180 to +180

Parameters

• pix_y (float) – y coordinate of the source, in pixels.

• pix_z (float) – z coordinates of the source, in pixels.

Returns

elevation and direction of the source in deg

Return type

float, float
