ecpi.common.num.array_square_cell module

Section author: ECLAIRs GP team

Tools to manage array square cell (index <=> position)

Summary

Classes:

ArraySquareCell

Features between index and physical position for a square cell array

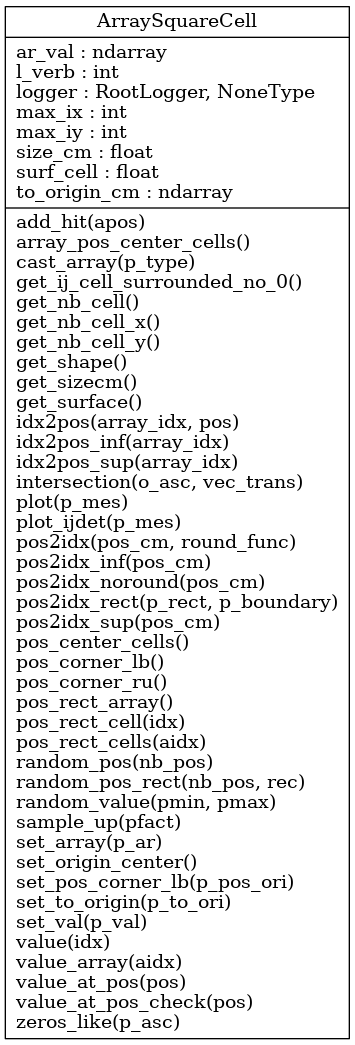

Class diagram:

Functions:

intersection_rect	Compute the rectangle formed by the intersection of two rectangles.
surf_intersection_rect	param p_r1 first rectangle

Reference

class ArraySquareCell(ncel_x=1, ncel_y=1, size_cm=1.0)

Bases: object

Features between index and physical position for a square cell array

In cartesian convention, ie index (0,0) is the corner left bottom of array.

  Example :
    - ArraySquareCell[1, 2] = 1
    - ArraySquareCell[0, 0] = 5

  Second axis

  ^
  |
  |
3 +-+-+
  |2|1|
2 +-+-+
  |3|4|
1 +-+-+
  |5|6|
0 +-+-+-+----> First axis
  0 1 2 3

add_hit(apos)

Add one on pixel associated to position

Parameters

apos (numpy array (n,2)) – array plan position of photon

array_pos_center_cells()

Return 2 array x and y with center cells

Returns

2 array x and y with center cells

Return type

numpy array

cast_array(p_type)

Cast array with p_type

Parameters

p_type – type number

get_ij_cell_surrounded_no_0()

get_nb_cell()

return total cell in array

get_nb_cell_x()

Return number of cell in first axis

get_nb_cell_y()

Return number of cell in second axis

get_shape()

get_sizecm()

Return size array in cm

get_surface()

return : [cm]^2

idx2pos(array_idx, pos='CTR')

return array position

Parameters

• array_idx (int) – array index

• pos (string) – pos = {Center: CTR, left bottom :LB, right up :RU}

idx2pos_inf(array_idx)

idx2pos_sup(array_idx)

intersection(o_asc, vec_trans)

Return the intersection rectangle between current array and o_asc translated of vec_trans

Parameters

o_asc – array

:type o_asc : ArraySquareCell :param vec_trans: translation to apply at o_asc :type vec_trans : vector :return: intersection rectangle between current array and o_asc translated of vec_trans :rtype: rectangle [[x_lb, y_lb], [x_ru, y_ru]] lb: left bottom, ru: right upper in cm

plot(p_mes='')

plot_ijdet(p_mes='')

pos2idx(pos_cm, round_func=None)

pos2idx_inf(pos_cm)

Return index x,y lower left corner of cell containing pos_cm

pos2idx_noround(pos_cm)

pos2idx_rect(p_rect, p_boundary=False)

return index rectangle associated to pos rectangle p_rect

Parameters

• p_rect – rectangle

• p_boundary –

pos2idx_sup(pos_cm)

pos_center_cells()

Return 2 array x and y with center cells

Returns

2 array x and y with center cells

Return type

numpy array

pos_corner_lb()

Return position corner ‘l’eft ‘b’ottom in absolute referential

Returns

[cm] position corner left bottom

Return type

array (2,)

pos_corner_ru()

Return position corner ‘r’ight ‘u’pper in absolute referential

Returns

[cm] position corner right upper

Return type

array (2,)

pos_rect_array()

Return current rectangle [[x_lb, y_lb], [x_ru, y_ru]] where lb: left bottom, ru: right upper in cm

Returns

rectangle [[x_lb, y_lb], [x_ru, y_ru]]

Return type

array 2x2

pos_rect_cell(idx)

for one cell

pos_rect_cells(aidx)

Returns physical position of the lower left and upper right corners.

Parameters

aidx – list or numpy array-like containing the indices

of the lower left corner :type aidx: [[ll_x_idx1, ll_y_idx1], [ll_x_idx2, ll_y_idx2], …] :return: list of the physical coord. of the ll and ur corners. :rtype: list of numpy-like arrays

random_pos(nb_pos)

random position in all array

Parameters

nb_pos (int) – number position to random

random_pos_rect(nb_pos, rec)

random position in rectangle given by parameter return : nb_pos random position in rec

random_value(pmin, pmax)

sample_up(pfact)

pfact is int

result: repeat pfactxpfact each element

set_array(p_ar)

Set the current ArraySquareCell object number of cells with those the p_ar ndarray.

Parameters

p_ar (array) – array model

set_origin_center()

Put the origin of the positions in the center of the array

set_pos_corner_lb(p_pos_ori: numpy.array)

vector OP where P=pos_array_lb and O: origin lb = left bottom

Parameters

p_pos_ori (array(float)) – position of the origin

set_to_origin(p_to_ori: numpy.array)

vector PO where P=pos_array_lb and O: origin

Parameters

p_to_ori (array(float)) – vector lb to origin

set_val(p_val)

Set p_val for all cells of array :param p_val: :type p_val: number

value(idx)

Return value of a given pixel index.

Parameters

idx ([idx_x, idx_y]) – pixel index

Returns

value

Return type

float

value_array(aidx: numpy.array)

Return value at a given set of pixel indices. Generalisation of value() for several indices.

Parameters

idx ([[idx_x, idx_y], .. ]) – pixel indices

Returns

values

Return type

array(float)

value_at_pos(pos)

Return the value at a given physical position.

Parameters

pos ([ll_x, ll_y]) – physical position

Returns

value

Return type

float

value_at_pos_check(pos)

Value in cell associated to pos, with limit check

Parameters

pos – x,y in array

zeros_like(p_asc)

Initiation of current ArraySquareCell object with parameter of ArraySquareCell p_asc.

Parameters

p_asc (ArraySquareCell) – array model

intersection_rect(p_r1, p_r2)

Compute the rectangle formed by the intersection of two rectangles.

Each rectangle is formed by an array-like structure of the form [[ll_x, ll_y], [ur_x, ur_y]] where the lower left (ll) corner has coordinates (ll_x, ll_y) and the upper right (ur) corner has coordinates (ur_x, ur_y).

If the two rectangles do not overlap then the function returns an array filled with zeros.

Parameters

• p_r1 (array-like structured as [[ll_x, ll_y], [ur_x, ur_y]]) – first rectangle

• p_r2 (array-like structured as [[ll_x, ll_y], [ur_x, ur_y]]) – second rectangle

Returns

intersection of the two input rectangles

Return type

array-like structured as [[ll_x, ll_y], [ur_x, ur_y]]

surf_intersection_rect(p_r1, p_r2)

Parameters

• p_r1 (array-like structured as [[ll_x, ll_y], [ur_x, ur_y]]) – first rectangle

• p_r2 (array-like structured as [[ll_x, ll_y], [ur_x, ur_y]]) – second rectangle

Returns

intersection of the two input rectangles
