ecpi.common.instru.model_effect module¶

Treatment of detector effects

Summary¶

Classes:

`ECLAIRsDetectorEffect`	Implementation of detector effects (ARF, IRF, RMF)
`ECLAIRsDetectorEffectDefault`	Default class of ECLAIRsDetectorEffect

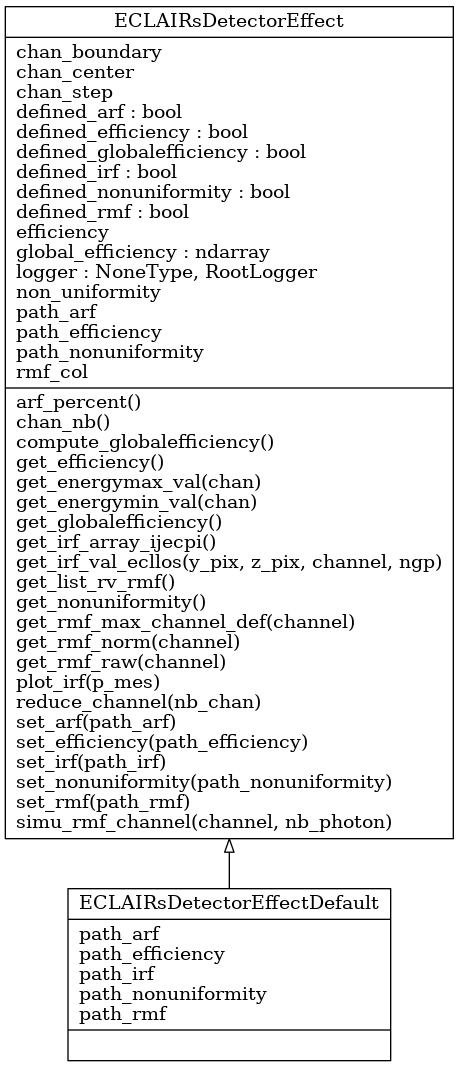

Class diagram:

_images/classes_ecpi.common.instru.model_effect.png

Functions:

get_idx_first_zero

return idx of the first zero

Reference¶

class ECLAIRsDetectorEffect[source]¶

Bases: object

Implementation of detector effects (ARF, IRF, RMF)

arf_percent()[source]¶

property chan_boundary¶

property chan_center¶

chan_nb()[source]¶

property chan_step¶

compute_globalefficiency()[source]¶: Compute global efficiency defined as the elementwise product between efficiency and non uniformity matrices.

get_efficiency()[source]¶

get_energymax_val(chan)[source]¶

Return energy value in a given channel index.

Parameters: chan (int) – upper channel index
Returns: energy value
Return type: float

get_energymin_val(chan)[source]¶

Return energy value in a given channel index.

Parameters: chan (int) – lower channel index
Returns: energy value
Return type: float

get_globalefficiency()[source]¶

get_irf_array_ijecpi()[source]¶

Return raw IRF array from EIC

Returns: raw IRF array, ie IRF value for pixel center in array 199x199
Return type: 2D numpy array 199x199

get_irf_val_ecllos(y_pix, z_pix, channel=None, ngp=False)[source]¶

Return IRF value at position with ECLLos referential in pixel unit

Warning

problem with border with array 199x199 ? Need to extrapolate ?

Parameters: y_pix (float) – y position in ECLLos referential in pixel unit

:param z_pix:z position in ECLLos referential in pixel unit :type z_pix: float :param channel: Energy channel index in EIC convention. Default is None. :type channel: int :param ngp: flag to opt for the Nearest Grid Position algorithm. Default is False. :type ngp: bool :param verbose: flag to enable/disable printing of the IRF coeff value. Default is False. :type verbose: bool :return: value of IRF at (y_pix, z_pix) :rtype: float

get_list_rv_rmf()[source]¶

return a list of generator object for each channel

Returns: list of generator object for each channel
Return type: generator object is an instance of scipy.stats.rv_discrete

get_nonuniformity()[source]¶

get_rmf_max_channel_def(channel)[source]¶: return channel where rmf becomes and stay to zero :return: index of first zero on distribution :rtype: int

get_rmf_norm(channel)[source]¶: Normalize rmf distribution :return: rmf normalize :rtype: numpy array

get_rmf_raw(channel)[source]¶

Returns: rmf of channel as readed in EIC file
Return type: numpy array

plot_irf(p_mes='')[source]¶

reduce_channel(nb_chan)[source]¶

set_arf(path_arf)[source]¶

Set ARF related attributes from file path

Parameters: path_arf (str) – path to ARF file

set_efficiency(path_efficiency)[source]¶

Set detector efficiency from file path.

Parameters: path_efficiency (str) – path to detector efficiency file

set_irf(path_irf)[source]¶

Set IRF related attributes from file path

Parameters: path_irf (str) – path to IRF file

set_nonuniformity(path_nonuniformity)[source]¶

Set detector non uniformity from file path.

Parameters: path_nonuniformity (str) – path to detector efficiency file

set_rmf(path_rmf)[source]¶

Set RMF related attributes from file path

Parameters: path_rmf (str) – path to RMF file

simu_rmf_channel(channel, nb_photon)[source]¶

Compute RMF for only one channel

Parameters

channel (int) – [0..nb channel[
nb_photon (int) – number of incident photon in channel

Returns

channel number where incident photon was detected

Return type

numpy array with size nb_photon

class ECLAIRsDetectorEffectDefault[source]¶

Bases: ecpi.common.instru.model_effect.ECLAIRsDetectorEffect

Default class of ECLAIRsDetectorEffect

get_idx_first_zero(p_array)[source]¶: return idx of the first zero
