G4VPreCompoundFragment Class Referenceabstract

#include <G4VPreCompoundFragment.hh>

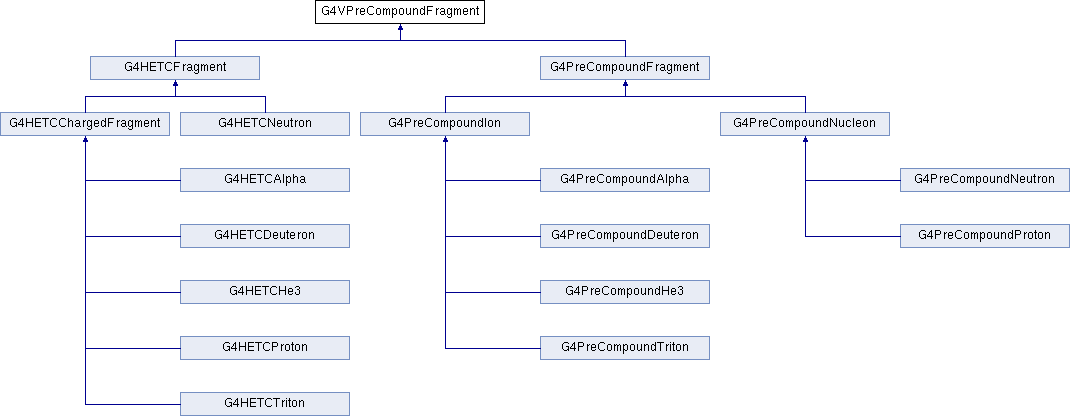

Inheritance diagram for G4VPreCompoundFragment:
G4HETCFragment G4PreCompoundFragment G4HETCChargedFragment G4HETCNeutron G4PreCompoundIon G4PreCompoundNucleon G4HETCAlpha G4HETCDeuteron G4HETCHe3 G4HETCProton G4HETCTriton G4PreCompoundAlpha G4PreCompoundDeuteron G4PreCompoundHe3 G4PreCompoundTriton G4PreCompoundNeutron G4PreCompoundProton

Public Member Functions

 G4VPreCompoundFragment (const G4ParticleDefinition *, G4VCoulombBarrier *aCoulombBarrier)

virtual ~G4VPreCompoundFragment ()

void Initialize (const G4Fragment &aFragment)

virtual G4double CalcEmissionProbability (const G4Fragment &aFragment)=0

virtual G4double GetKineticEnergy (const G4Fragment &aFragment)=0

G4ReactionProduct * GetReactionProduct () const

G4int GetA () const

G4int GetZ () const

G4int GetRestA () const

G4int GetRestZ () const

G4double ResidualA13 () const

G4double GetCoulombBarrier () const

G4double GetBindingEnergy () const

G4double GetMaximalKineticEnergy () const

G4double GetEnergyThreshold () const

G4double GetEmissionProbability () const

G4double GetNuclearMass () const

G4double GetRestNuclearMass () const

G4double GetReducedMass () const

const G4LorentzVector & GetMomentum () const

void SetMomentum (const G4LorentzVector &value)

const G4String GetName () const

void SetOPTxs (G4int)

void UseSICB (G4bool)


Protected Member Functions

G4bool IsItPossible (const G4Fragment &aFragment) const


Protected Attributes

G4PreCompoundParameters * theParameters

G4Pow * g4pow

G4double theEmissionProbability

G4double theCoulombBarrier

G4int OPTxs

G4bool useSICB


Friends

std::ostream & operator<< (std::ostream &, const G4VPreCompoundFragment *)

std::ostream & operator<< (std::ostream &, const G4VPreCompoundFragment &)


Detailed Description

Definition at line 54 of file G4VPreCompoundFragment.hh.

Constructor & Destructor Documentation

G4VPreCompoundFragment::G4VPreCompoundFragment ( const G4ParticleDefinition *  part,
G4VCoulombBarrier *  aCoulombBarrier
)

Definition at line 39 of file G4VPreCompoundFragment.cc.

References python.hepunit::eplus, g4pow, G4VPreCompoundFragment(), G4ParticleDefinition::GetBaryonNumber(), G4Pow::GetInstance(), G4ParticleDefinition::GetPDGCharge(), G4ParticleDefinition::GetPDGMass(), and theParameters.

Referenced by G4VPreCompoundFragment().

41  : particle(part), theCoulombBarrierPtr(aCoulombBarrier),
42  theRestNucleusA(0),theRestNucleusZ(0),theBindingEnergy(0.0),
43  theMaximalKineticEnergy(-MeV),theRestNucleusMass(0.0),
44  theReducedMass(0.0),theMomentum(0.,0.,0.,0.),
45  theEmissionProbability(0.0),theCoulombBarrier(0.0),
46  OPTxs(3),useSICB(false)
47 {
48  theA = particle->GetBaryonNumber();
49  theZ = G4int(particle->GetPDGCharge()/eplus + 0.1);
50  theMass = particle->GetPDGMass();
51  theParameters = new G4PreCompoundParameters();
52  g4pow = G4Pow::GetInstance();
53  theRestNucleusA13 = 0;
54 }
G4Pow::GetInstance
static G4Pow * GetInstance()
Definition: G4Pow.cc:53
G4int
int G4int
Definition: G4Types.hh:78
G4ParticleDefinition::GetPDGMass
G4double GetPDGMass() const
Definition: G4ParticleDefinition.hh:161
G4VPreCompoundFragment::theParameters
G4PreCompoundParameters * theParameters
Definition: G4VPreCompoundFragment.hh:169
G4ParticleDefinition::GetPDGCharge
G4double GetPDGCharge() const
Definition: G4ParticleDefinition.hh:163
G4VPreCompoundFragment::~G4VPreCompoundFragment ( )
virtual

Definition at line 56 of file G4VPreCompoundFragment.cc.

References theParameters.

57 {
58  delete theParameters;
59 }
G4VPreCompoundFragment::theParameters
G4PreCompoundParameters * theParameters
Definition: G4VPreCompoundFragment.hh:169

Member Function Documentation

virtual G4double G4VPreCompoundFragment::CalcEmissionProbability ( const G4Fragment &  aFragment)
pure virtual

Implemented in G4PreCompoundFragment, and G4HETCFragment.

G4int G4VPreCompoundFragment::GetA ( ) const
inline

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundAlpha::G4PreCompoundAlpha(), G4PreCompoundDeuteron::G4PreCompoundDeuteron(), G4PreCompoundHe3::G4PreCompoundHe3(), G4PreCompoundNeutron::G4PreCompoundNeutron(), G4PreCompoundProton::G4PreCompoundProton(), G4PreCompoundTriton::G4PreCompoundTriton(), G4HETCTriton::K(), G4HETCHe3::K(), G4HETCAlpha::K(), G4HETCDeuteron::K(), G4HETCNeutron::K(), operator<<(), G4PreCompoundEmission::PerformEmission(), G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4double G4VPreCompoundFragment::GetBindingEnergy ( ) const
inline

Referenced by G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4double G4VPreCompoundFragment::GetCoulombBarrier ( ) const
inline

Referenced by G4HETCAlpha::GetBeta(), G4HETCHe3::GetBeta(), G4HETCProton::GetBeta(), G4HETCTriton::GetBeta(), G4HETCDeuteron::GetBeta(), G4PreCompoundProton::GetBeta(), G4PreCompoundIon::GetBeta(), G4HETCChargedFragment::GetKineticEnergy(), and Initialize().

G4double G4VPreCompoundFragment::GetEmissionProbability ( ) const
inline

Referenced by G4PreCompoundFragment::GetKineticEnergy().

G4double G4VPreCompoundFragment::GetEnergyThreshold ( ) const
inline

Referenced by G4HETCFragment::CalcEmissionProbability().

virtual G4double G4VPreCompoundFragment::GetKineticEnergy ( const G4Fragment &  aFragment)
pure virtual

Implemented in G4PreCompoundFragment, G4HETCNeutron, and G4HETCChargedFragment.

Referenced by G4PreCompoundEmission::PerformEmission().

G4double G4VPreCompoundFragment::GetMaximalKineticEnergy ( ) const
inline

Referenced by G4HETCFragment::CalcEmissionProbability(), G4PreCompoundFragment::CalcEmissionProbability(), G4HETCChargedFragment::GetKineticEnergy(), G4HETCNeutron::GetKineticEnergy(), G4PreCompoundFragment::GetKineticEnergy(), and G4PreCompoundIon::ProbabilityDistributionFunction().

const G4LorentzVector& G4VPreCompoundFragment::GetMomentum ( ) const
inline
const G4String G4VPreCompoundFragment::GetName ( ) const
inline
G4double G4VPreCompoundFragment::GetNuclearMass ( ) const
inline

Referenced by operator<<(), and G4PreCompoundEmission::PerformEmission().

G4ReactionProduct* G4VPreCompoundFragment::GetReactionProduct ( ) const
inline

Referenced by G4PreCompoundEmission::PerformEmission().

G4double G4VPreCompoundFragment::GetReducedMass ( ) const
inline

Referenced by G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4int G4VPreCompoundFragment::GetRestA ( ) const
inline

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundAlpha::G4PreCompoundAlpha(), G4PreCompoundHe3::G4PreCompoundHe3(), G4PreCompoundNeutron::G4PreCompoundNeutron(), G4PreCompoundProton::G4PreCompoundProton(), G4PreCompoundTriton::G4PreCompoundTriton(), G4HETCNeutron::GetAlpha(), G4HETCNeutron::GetBeta(), G4HETCTriton::K(), G4HETCAlpha::K(), G4HETCHe3::K(), G4HETCProton::K(), G4HETCDeuteron::K(), G4HETCNeutron::K(), G4PreCompoundEmission::PerformEmission(), G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4double G4VPreCompoundFragment::GetRestNuclearMass ( ) const
inline
G4int G4VPreCompoundFragment::GetRestZ ( ) const
inline

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundAlpha::G4PreCompoundAlpha(), G4PreCompoundHe3::G4PreCompoundHe3(), G4PreCompoundNeutron::G4PreCompoundNeutron(), G4PreCompoundProton::G4PreCompoundProton(), G4PreCompoundTriton::G4PreCompoundTriton(), G4HETCHe3::GetAlpha(), G4HETCProton::GetAlpha(), G4HETCTriton::GetAlpha(), G4HETCAlpha::GetAlpha(), G4HETCDeuteron::GetAlpha(), G4HETCTriton::K(), G4HETCProton::K(), G4HETCHe3::K(), G4HETCAlpha::K(), G4HETCDeuteron::K(), G4HETCNeutron::K(), and G4PreCompoundEmission::PerformEmission().

G4int G4VPreCompoundFragment::GetZ ( ) const
inline

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundAlpha::G4PreCompoundAlpha(), G4PreCompoundDeuteron::G4PreCompoundDeuteron(), G4PreCompoundHe3::G4PreCompoundHe3(), G4PreCompoundNeutron::G4PreCompoundNeutron(), G4PreCompoundProton::G4PreCompoundProton(), G4PreCompoundTriton::G4PreCompoundTriton(), G4HETCAlpha::GetAlpha(), G4HETCTriton::GetAlpha(), G4HETCHe3::GetAlpha(), G4HETCDeuteron::GetAlpha(), G4HETCHe3::K(), G4HETCProton::K(), G4HETCAlpha::K(), G4HETCTriton::K(), G4HETCDeuteron::K(), G4HETCNeutron::K(), operator<<(), G4PreCompoundEmission::PerformEmission(), and G4PreCompoundNucleon::ProbabilityDistributionFunction().

void G4VPreCompoundFragment::Initialize ( const G4Fragment &  aFragment)

Definition at line 79 of file G4VPreCompoundFragment.cc.

References g4pow, G4Fragment::GetA_asInt(), GetCoulombBarrier(), G4Fragment::GetExcitationEnergy(), G4Fragment::GetGroundStateMass(), G4Fragment::GetMomentum(), G4NucleiProperties::GetNuclearMass(), G4Fragment::GetZ_asInt(), CLHEP::HepLorentzVector::m(), theCoulombBarrier, and G4Pow::Z13().

80 {
81  theRestNucleusA = aFragment.GetA_asInt() - theA;
82  theRestNucleusZ = aFragment.GetZ_asInt() - theZ;
83
84  if ((theRestNucleusA < theRestNucleusZ) ||
85  (theRestNucleusA < theA) ||
86  (theRestNucleusZ < theZ))
87  {
88  // In order to be sure that emission probability will be 0.
89  theMaximalKineticEnergy = 0.0;
90  return;
91  }
92
93  theRestNucleusA13 = g4pow->Z13(theRestNucleusA);
94
95  // Calculate Coulomb barrier
96  theCoulombBarrier = theCoulombBarrierPtr->
97  GetCoulombBarrier(theRestNucleusA,theRestNucleusZ,
98  aFragment.GetExcitationEnergy());
99
100  // Calculate masses
101  theRestNucleusMass =
102  G4NucleiProperties::GetNuclearMass(theRestNucleusA, theRestNucleusZ);
103  theReducedMass = theRestNucleusMass*theMass/(theRestNucleusMass + theMass);
104
105  // Compute Binding Energies for fragments
106  // needed to separate a fragment from the nucleus
107  theBindingEnergy =
108  theRestNucleusMass + theMass - aFragment.GetGroundStateMass();
109
110  // Compute Maximal Kinetic Energy which can be carried by fragments
111  // after separation - the true assimptotic value
112  G4double Ecm = aFragment.GetMomentum().m();
113  theMaximalKineticEnergy =
114  ((Ecm-theRestNucleusMass)*(Ecm+theRestNucleusMass) + theMass*theMass)/(2.0*Ecm)-theMass;
115 }
G4NucleiProperties::GetNuclearMass
static G4double GetNuclearMass(const G4double A, const G4double Z)
Definition: G4NucleiProperties.cc:53
G4Pow::Z13
G4double Z13(G4int Z) const
Definition: G4Pow.hh:129
G4Fragment::GetA_asInt
G4int GetA_asInt() const
Definition: G4Fragment.hh:238
G4Fragment::GetMomentum
const G4LorentzVector & GetMomentum() const
Definition: G4Fragment.hh:271
G4Fragment::GetGroundStateMass
G4double GetGroundStateMass() const
Definition: G4Fragment.hh:260
G4VPreCompoundFragment::GetCoulombBarrier
G4double GetCoulombBarrier() const
G4Fragment::GetZ_asInt
G4int GetZ_asInt() const
Definition: G4Fragment.hh:243
G4double
double G4double
Definition: G4Types.hh:76
G4Fragment::GetExcitationEnergy
G4double GetExcitationEnergy() const
Definition: G4Fragment.hh:255
G4bool G4VPreCompoundFragment::IsItPossible ( const G4Fragment &  aFragment) const
inlineprotected

Referenced by G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4double G4VPreCompoundFragment::ResidualA13 ( ) const
inline

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundAlpha::G4PreCompoundAlpha(), G4PreCompoundHe3::G4PreCompoundHe3(), G4PreCompoundNeutron::G4PreCompoundNeutron(), G4PreCompoundProton::G4PreCompoundProton(), G4PreCompoundTriton::G4PreCompoundTriton(), G4PreCompoundNucleon::GetOpt0(), and G4PreCompoundIon::GetOpt0().

void G4VPreCompoundFragment::SetMomentum ( const G4LorentzVector &  value)
inline

Referenced by G4PreCompoundEmission::PerformEmission().

void G4VPreCompoundFragment::SetOPTxs ( G4int  )
inline
void G4VPreCompoundFragment::UseSICB ( G4bool  )
inline

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  out,
const G4VPreCompoundFragment *  theFragment
)
friend

Definition at line 69 of file G4VPreCompoundFragment.cc.

70 {
71  out
72  << "PreCompoundModel Emitted Fragment: Z= " << theFragment->GetZ()
73  << " A= " << theFragment->GetA()
74  << " Mass(GeV)= " << theFragment->GetNuclearMass()/CLHEP::GeV;
75  return out;
76 }
G4VPreCompoundFragment::GetA
G4int GetA() const
G4VPreCompoundFragment::GetNuclearMass
G4double GetNuclearMass() const
G4VPreCompoundFragment::GetZ
G4int GetZ() const
std::ostream& operator<< ( std::ostream &  out,
const G4VPreCompoundFragment &  theFragment
)
friend

Definition at line 62 of file G4VPreCompoundFragment.cc.

63 {
64  out << &theFragment;
65  return out;
66 }

Field Documentation

G4Pow* G4VPreCompoundFragment::g4pow
protected

Definition at line 170 of file G4VPreCompoundFragment.hh.

Referenced by G4PreCompoundAlpha::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundProton::CrossSection(), G4VPreCompoundFragment(), G4HETCNeutron::GetAlpha(), G4HETCNeutron::GetBeta(), G4PreCompoundProton::GetOpt1(), G4PreCompoundAlpha::GetOpt12(), G4PreCompoundTriton::GetOpt12(), G4PreCompoundHe3::GetOpt12(), G4PreCompoundDeuteron::GetOpt12(), G4PreCompoundProton::GetOpt2(), G4PreCompoundProton::GetOpt3(), G4PreCompoundAlpha::GetOpt34(), G4PreCompoundDeuteron::GetOpt34(), G4PreCompoundHe3::GetOpt34(), G4PreCompoundTriton::GetOpt34(), Initialize(), G4PreCompoundNucleon::ProbabilityDistributionFunction(), and G4PreCompoundIon::ProbabilityDistributionFunction().

G4int G4VPreCompoundFragment::OPTxs
protected

Definition at line 176 of file G4VPreCompoundFragment.hh.

Referenced by G4PreCompoundFragment::CalcEmissionProbability(), G4PreCompoundDeuteron::CrossSection(), G4PreCompoundProton::CrossSection(), G4PreCompoundNeutron::CrossSection(), G4PreCompoundHe3::CrossSection(), G4PreCompoundTriton::CrossSection(), G4PreCompoundAlpha::CrossSection(), and G4PreCompoundFragment::GetKineticEnergy().

G4double G4VPreCompoundFragment::theCoulombBarrier
protected

Definition at line 173 of file G4VPreCompoundFragment.hh.

Referenced by G4HETCFragment::CalcEmissionProbability(), G4PreCompoundFragment::CalcEmissionProbability(), G4PreCompoundFragment::GetKineticEnergy(), G4PreCompoundProton::GetOpt2(), and Initialize().

G4double G4VPreCompoundFragment::theEmissionProbability
protected

Definition at line 172 of file G4VPreCompoundFragment.hh.

Referenced by G4HETCFragment::CalcEmissionProbability(), and G4PreCompoundFragment::CalcEmissionProbability().

G4PreCompoundParameters* G4VPreCompoundFragment::theParameters
protected

Definition at line 169 of file G4VPreCompoundFragment.hh.

Referenced by G4HETCFragment::G4HETCFragment(), G4PreCompoundIon::G4PreCompoundIon(), G4VPreCompoundFragment(), G4HETCChargedFragment::GetKineticEnergy(), G4HETCNeutron::GetKineticEnergy(), G4PreCompoundNucleon::GetOpt0(), G4PreCompoundIon::GetOpt0(), G4PreCompoundNucleon::ProbabilityDistributionFunction(), G4PreCompoundIon::ProbabilityDistributionFunction(), and ~G4VPreCompoundFragment().

G4bool G4VPreCompoundFragment::useSICB
protected

Definition at line 178 of file G4VPreCompoundFragment.hh.

Referenced by G4PreCompoundFragment::CalcEmissionProbability(), G4PreCompoundFragment::GetKineticEnergy(), and G4PreCompoundProton::GetOpt2().

The documentation for this class was generated from the following files:
