The Control & Down Conversion cards arrive at Nançay for EMBRACE, June/July 2010
previousindexnext

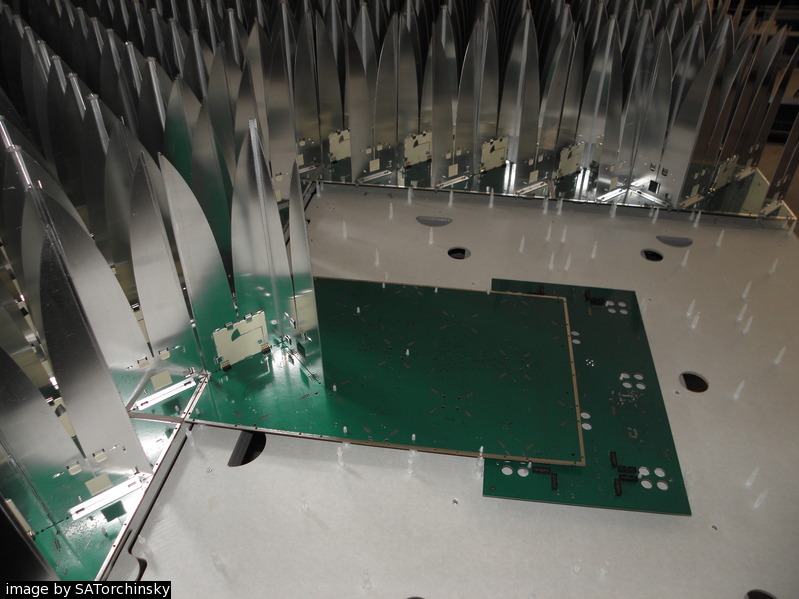

An EMBRACE tile is built up from a centre board to which is attached 6 hexboards. Twelve Vivaldi antenna elements are then connected on the top of each hexboard.
